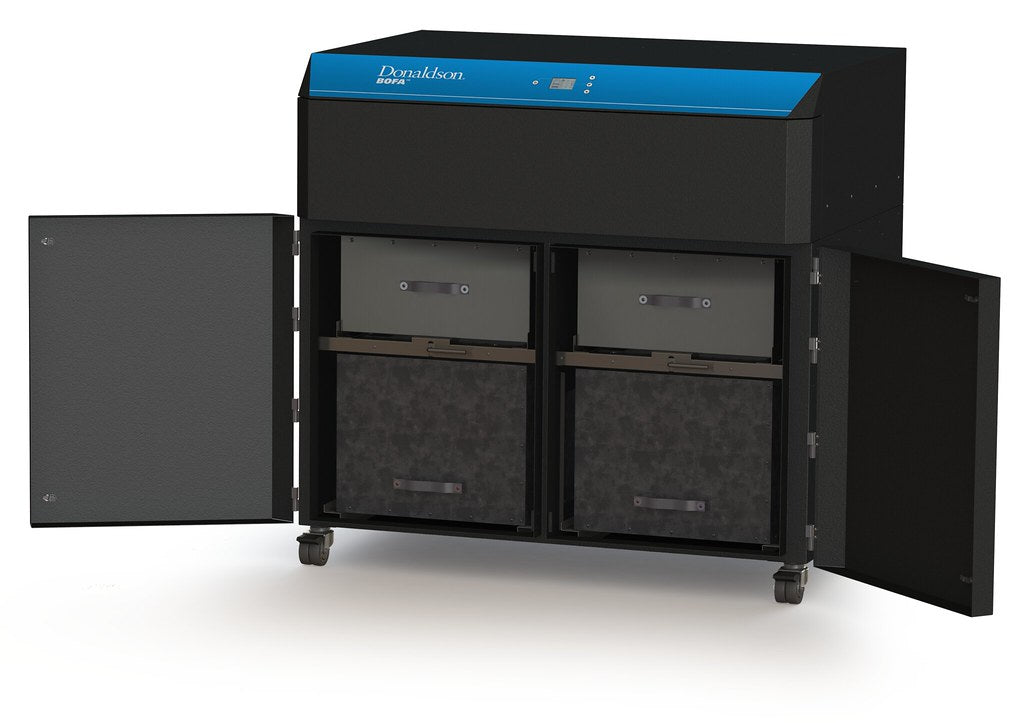

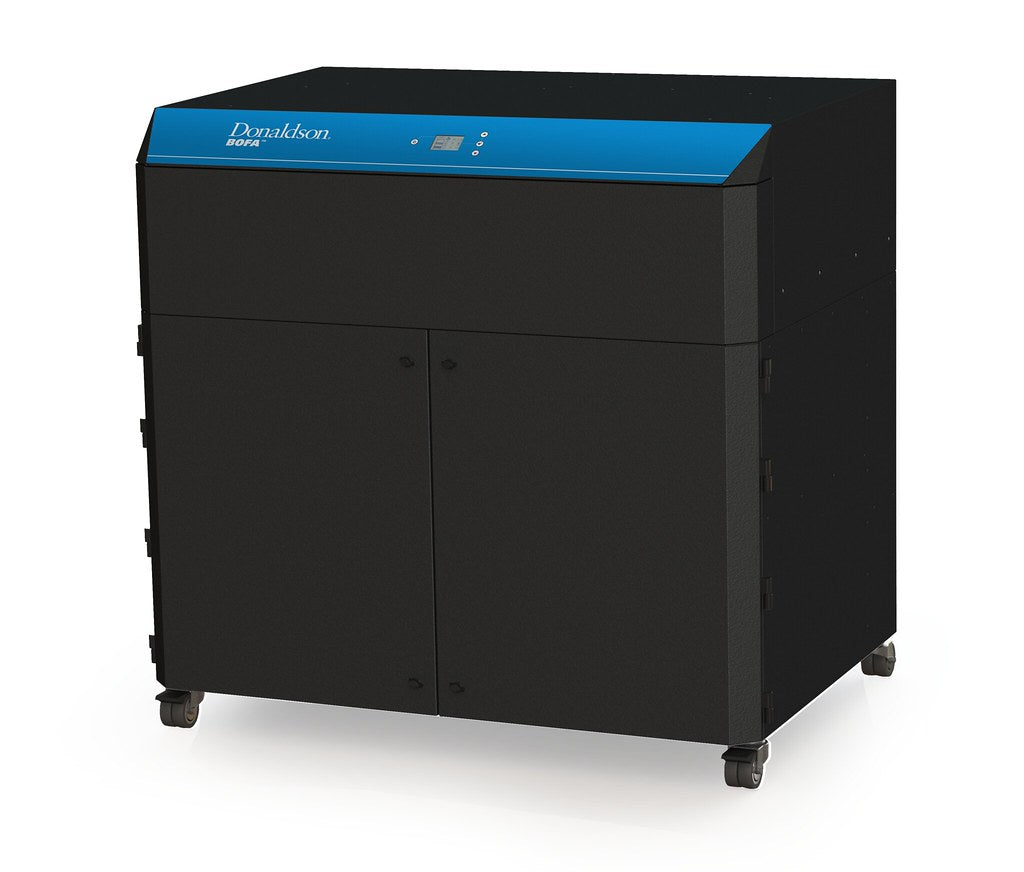

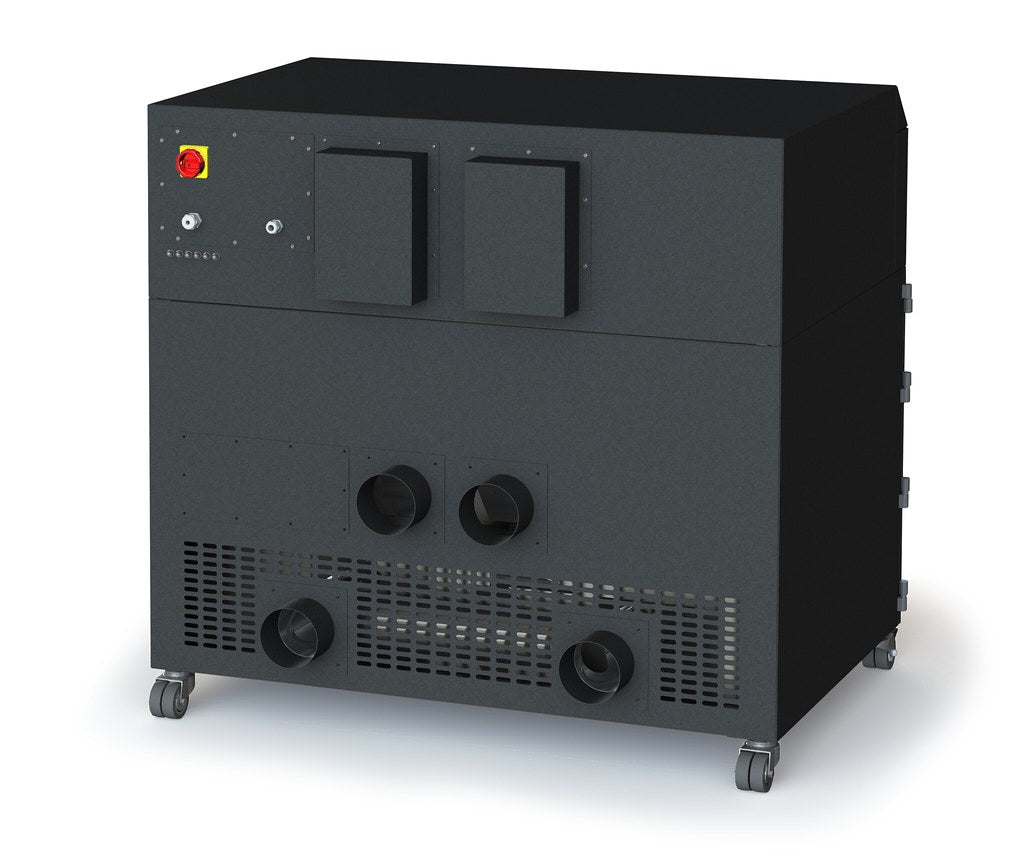

Donaldson BOFA AD 2000 iQ Laser Fume Extraction System
BOFA Donaldson
Donaldson BOFA AD 2000 iQ Laser Fume Extraction System
Description
Description
The Donaldson BOFA AD 2000 iQ is a high-capacity laser fume extraction system for demanding production environments. It combines multi-stage filtration with automatic airflow control and real-time monitoring to help you manage extraction performance and filter maintenance.
Designed for laser cutting, engraving, welding, selective laser sintering and selective laser melting, the AD 2000 iQ offers flexibility for different extraction installations and exhaust configurations.
Real-time performance monitoring
The integrated iQ operating system displays airflow readings and individual filter status on a high-contrast screen. USB diagnostics provide access to system data to support troubleshooting and maintenance planning.
Multi-stage filtration
DeepPleat DUO pre-filters capture particulate before it reaches the HEPA filters. Their integrated drop-out chambers work with reverse flow air technology to separate larger particles, helping reduce loading on the filter media.
HEPA filtration captures fine particles that pass through the pre-filter stage, while activated carbon filtration targets gaseous contaminants and odours.
Automatic airflow control
Set the airflow required for your application and the system adjusts to help maintain it as the filters load.
Technical specifications
| Specification | Details |
|---|---|
| Model | Donaldson BOFA AD 2000 iQ |
| Airflow / pressure | 2,500 m³/h / 96 mbar |
| Dimensions (H × W × D) | 1,280 × 1,360 × 1,005 mm |
| Weight | 340 kg |
| Cabinet | Powder-coated mild steel |
| Pre-filtration | Two DeepPleat DUO pre-filters |
| Main filtration | Two combined HEPA/gas filters |
| UK/EU electrical supply | 415 V, three-phase |
Optional features
-
System OK signal: communicates filter blockage or system faults.
-
Remote stop/start: allows extraction to be controlled alongside compatible machinery.
-
VOC sensor: monitors exhaust air and alerts you when VOC levels exceed a preset threshold.
Optional features depend on the configuration ordered.
Factory Order – Estimated Dispatch Time
This item is ordered directly from the factory. Please allow approximately 10 business days for dispatch. This is an estimate and may vary depending on factory availability. Delivery time is additional. We’ll contact you if there is a delay with your order.
Contact Mantech to confirm the extraction specification, filtration and connections required for your laser and the materials you process.
