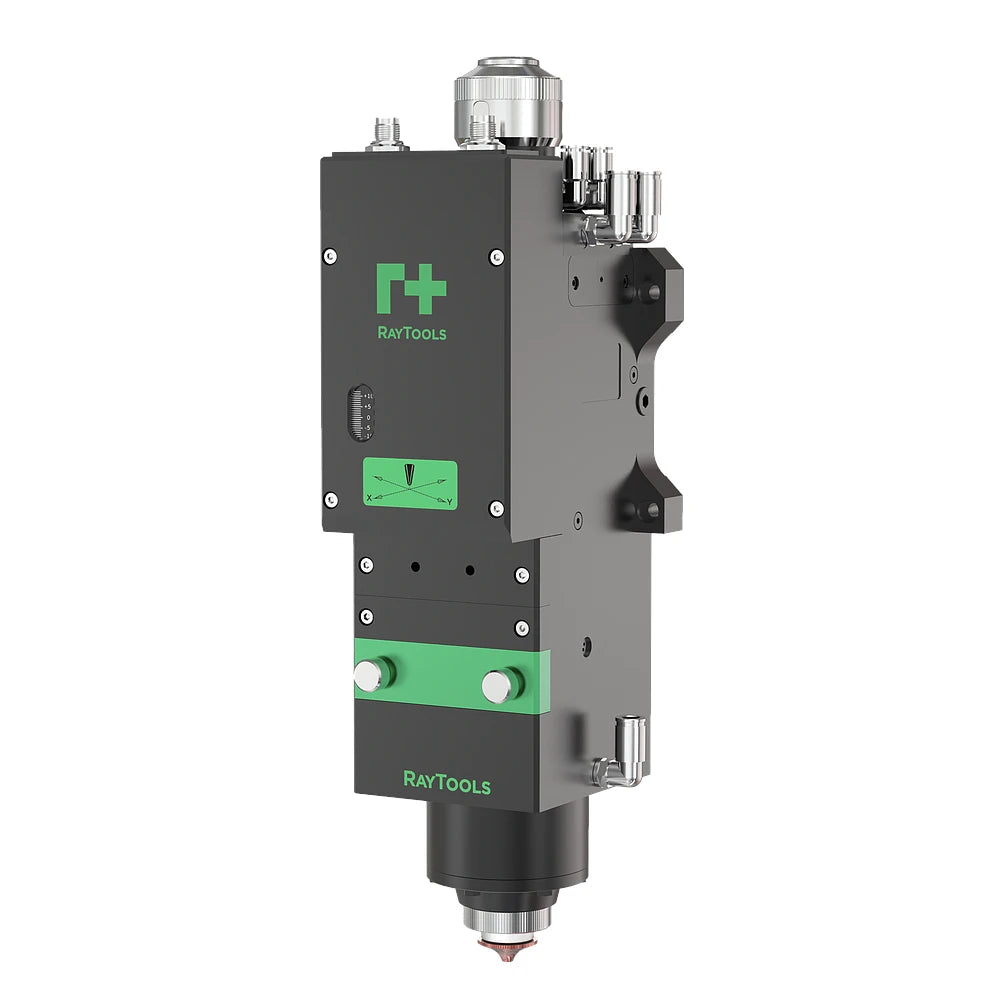

Replacement Raytools Cutting Head BM06K Model
BM06K Auto Focus Laser Cutting Head Power rating 6KW; Standard auto focus laser cutting.
Description
This cooling system is designed for both the collimation and focus modules, as well as the nozzle, which significantly enhances protection for the nozzle and ceramic parts, thereby extending their lifespan.
The unit includes four cover glasses that substantially reduce contamination risks during the replacement of the fibre and cover glass, prolonging the life of both the collimation and focus lenses.
It features an auto-focus mechanism that adjusts the collimation lens, enabling faster operation and a wider auto-focus range.
The temperature of the lower cover glass can be monitored in real-time via desktop computer, with an alarm feature for overheating to safeguard the optical path system effectively.
The integrated design ensures airtight sealing. The improved fibre interfaces (QBH, QD, G5) enhance compatibility with various lasers and prevent issues related to leaks and rust.
| Fibre Interface | QBH, QD, G5 |
| NA | 0.13 |
| Auto Focus: | Yes |
| Range |
-35 ~ +25 |
| Acceleration |
≤ 10 m/s2 |
| Velocity |
≤ 200 m/min |
| Accuracy |
≤ 10um |
| Protective Lens Dims | |
| Collimation (Top) | dia 24.9*1.5mm |
| Focusing (Middle/Bottom | dia 37*7mm |
| Collimation Length | 100mm |
| Focus Length | 150mm, 200mm |
| Nozzle Style | Single, Double, Boost |
| Diameter of Nozzle Tip | |
| Single | 1.2-5mm |
| Double | 1.0-1.8mm |
| Boost | 1.6-7mm |
| Assist Gas Pressure | ≤ 30 bar |
| Weight | |
| 7.5kg |
Specifications subject to change without notice.
